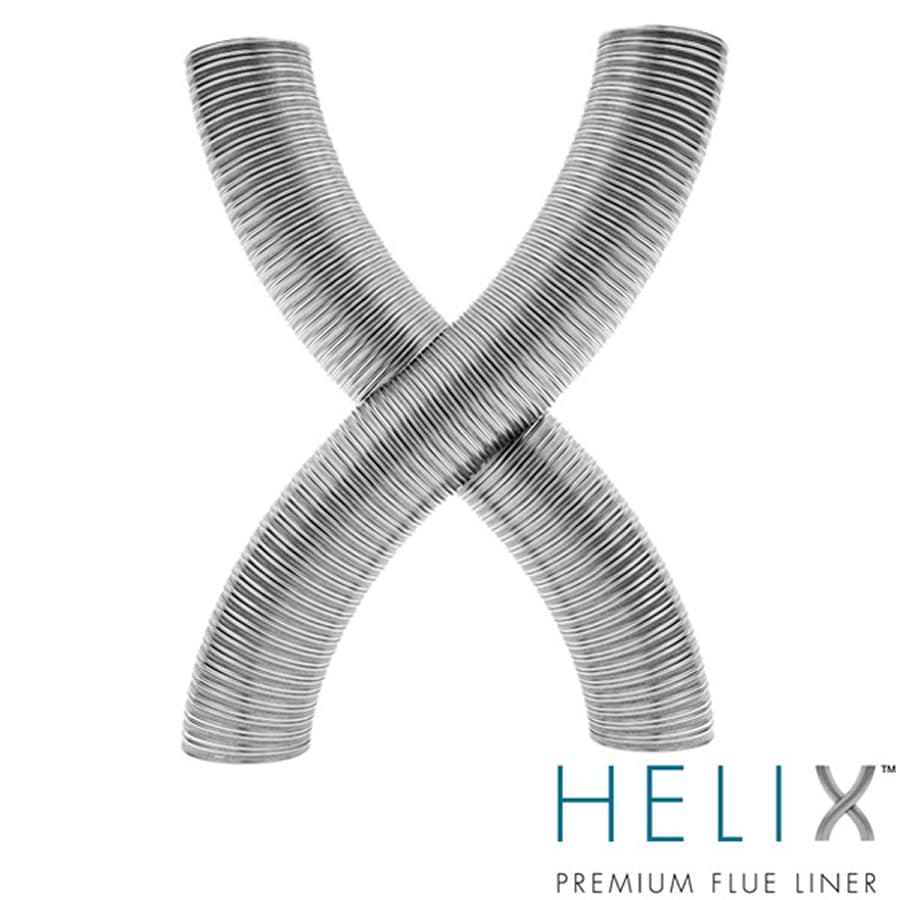

Our Helix Premium Flexible Flue Liner is Engineered utilising the most advanced profile on the market today, Helix represents the next evolutionary gene in stainless steel, twin-walled flexible flue liners, approved for use with all solid fuels, gas and oil.
Please note, the ‘lifetime of the appliance’ warranty does not cover the burning of coal with 316 grade Helix – if burning coal, we advise using 904 Helix Liner to benefit from the lifetime warranty. Please select the following Helix Brochure and Installation Guide to meet the lifetime of the appliance warranty.
The Omega Seam
The precision engineering of the inner Omega seam is such that Helix offers an unrivalled smooth internal skin.
Specifications
Diameter: 5″ (125mm)
Approvals: CE
Brand: Helix
Warranty: Lifetime of the appliance (void if burning coal – please use 904)
Inner Skin: 316L
Outer Skin: 316L
Material Thickness: 0.10mm (+/-0.005mm)
Fuels: Solid fuels, gas & oil
Seam: Omega
Pressure: P1 (200 pascals)
Tested length: 20m
Flexibility: Tested to 3x diameter
Applications: Wet & Dry Thermal Rating: 600
