The Disused Chimney Cap will minimise heat loss from disused chimney flues. It provides 100% protection of the flue against rain, hail, snow, nesting birds, leaves etc. – protecting it from damage while still allowing ventilation of the flue.
o Fitted in seconds to any standard round pot up to 330mm Diameter Chimney Pots The Chimney Cap is 350mm in Diameter however we recommend that there is a ventilation gap between the Chimney Pot and Chimney Cap.
o 100% protection from rain, snow, nesting birds etc.
o Helps eliminate wasteful heat loss.
o Blends neatly with the traditional character of the stack
o Economical and totally reliable
Every Disused Chimney Cap comes with Our 5 Year Guarantee.
Fitting (or removal)
Fitting or removal is simple and takes seconds, requiring no special skills. However, gaining access to pots should only be undertaken by a suitably experienced person using appropriate access equipment.
o Pots need to be in sound condition. Any cracked pot should either be replaced or suitably bound to accept lateral pressure from the retaining spring wires.
o The C-Cap is for use on redundant, disused chimneys only. Care needs to be taken that capping is not carried out to any flue that is still in use. Check it first!
o As with any capping, the flue should preferably be swept clean and any obstruction (e.g. bird’s nests) removed.
o C-Cap has been site-tested over 10 years and in severe gale conditions from Cornwall to the Orkneys.

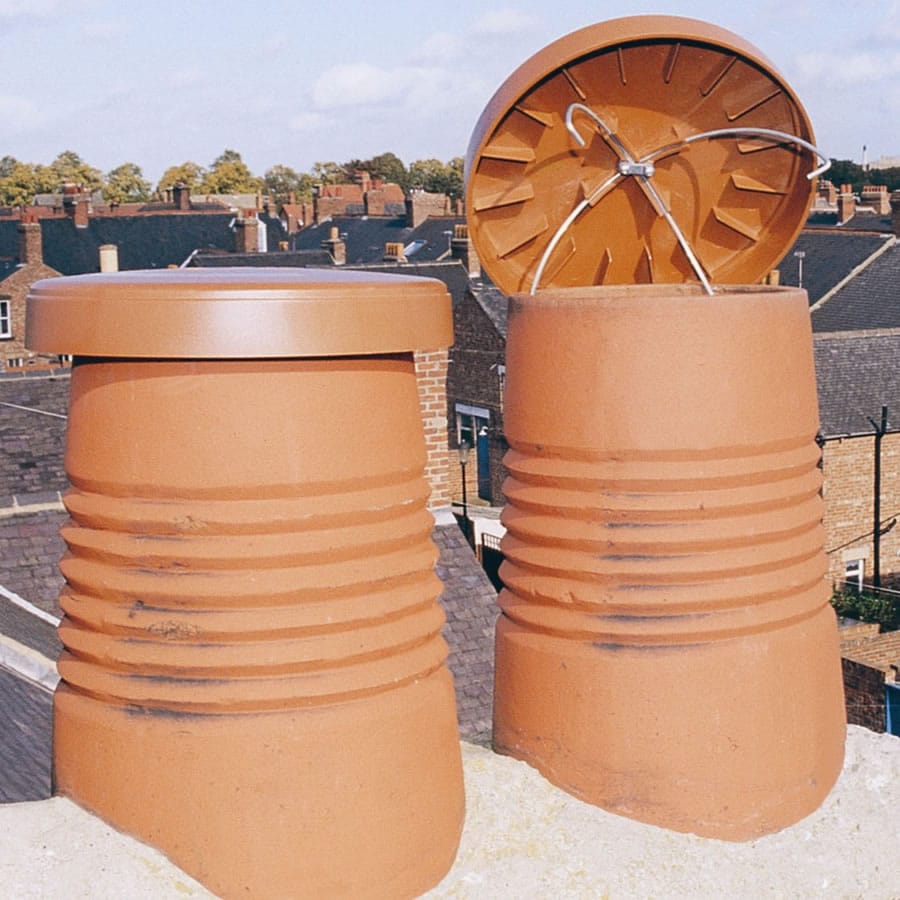

o Tough, moulded Cowl ideally suited to outdoor applications, the C-Cap fits neatly over the chimney pot where it is retained by galvanised steel spring wires.
It can be fitted to any standard round pot up to 330mm diameter and is light enough to allow several to easily be carried up the roof, where fitting to the pot takes a matter of seconds.
o Many thousands of C-Caps are fitted throughout the UK, as far north as the Orkneys, and it is the only cowl for disused chimneys that guarantees 100% protection against rain, snow, gales, birds etc. – in fact everything nature can throw at it.
o Please note that no insect screen is supplied with the larger ‘350’ C-Cap however, a screen of 340mm diameter could be quite readily formed from bee mesh to fit inside the cap, if required.
o Pots need to be in sound condition. Any cracked pot should either be replaced or suitably strapped to allow insertion of the C-Cap retaining wires.
o The unique design of the C-Cap allows continuous, permanent ventilation of the chimney, as recommended by Building Research Establishment (BRE).

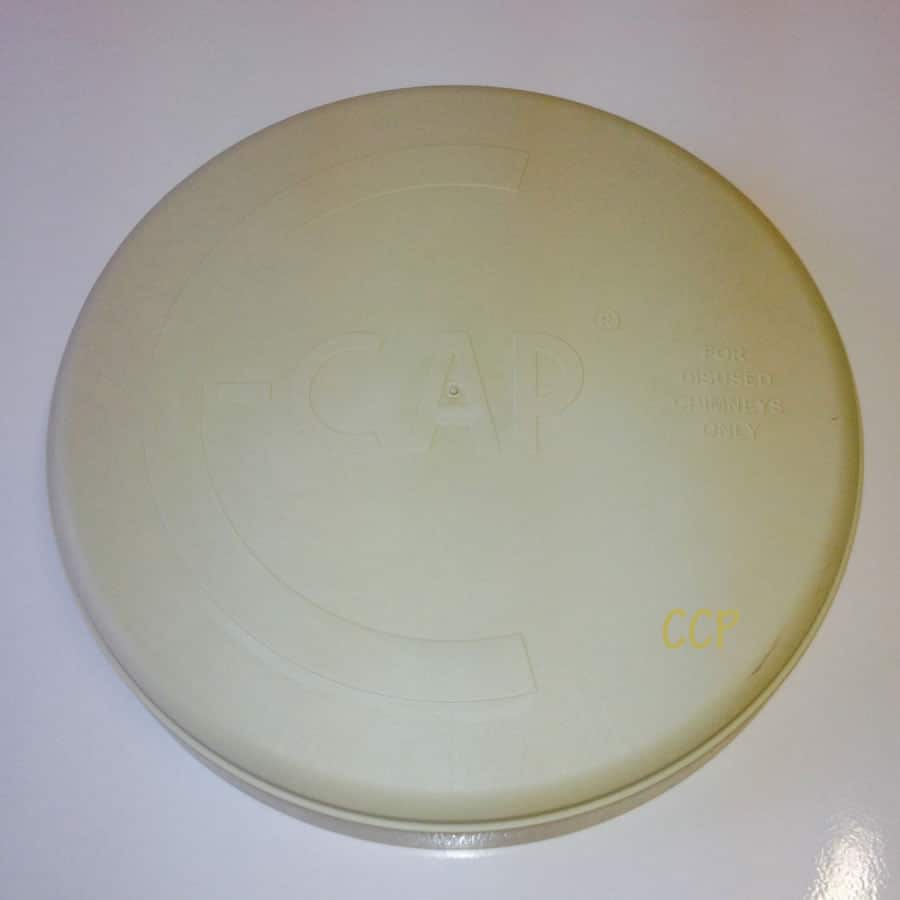

The C-Cap Chimney Cap is a Robust, High Durable, UV Resistant and has a well-proven record for reliability and faultless performance. This Chimney Cap is designed to fit any standard design round chimney pot, up to 330mm external diameter.
Choosing the Correct Size
How to choose a Chimney Cap or Chimney Cowl for your Chimney Pot
If you can accurately guess the size or width of the chimney pot from the floor you can order the right Cap or Cowl from Chimney Cowl Products. The good news is this is relatively easy once you know the rough size of a house brick and the thickness of the walls of a chimney pot.
Using either the naked eye or a set of binoculars get a ‘side on’ view of the chimney pot you wish to cap or fit a chimney cowl, then find a full sized brick nearest to the chosen pot as a reference, normally directly underneath.
Now imagine that the brick is placed on top of the chimney pot itself and make a mental note whether it would fit inside, hang over, or sit flush. It may sound silly but once you know that the width of an average UK house brick is 225mm ( 9″ ) for imperial or 215 ( 8 and half ” ) on a modern property, it provides a very accurate impromptu tape measure.
The other factor you may need is internal pot size, this can also be guessed quite accurately if you know the average thickness of a chimney pot is about 25mm ( 1″ ) , simply factor this in and you can work out most chimney pot width’s quite accurately.
If you have large decorative rolls on top of the pot, make an allowance for this by guessing, using a brick as your guide.
That’s it, our range of Chimney Cowls and Caps are all available for immediate delivery.
